Txheej txheem cej luam
Lub semi-automatic nrov plig plawg disc tshuab tsim abrasive flaps nyob rau hauv ib tug semi-automatic yam. Lub tshuab no yog cov cuab yeej siv tsis siv neeg rau kev hloov pauv ntawm cov discs, tab sis nws yuav tsum tau ua los ntawm cov neeg ua haujlwm los ua cov hauv qab thiab npaj cov yeeb yaj kiab, thiab tom qab ntawd pib cov khoom siv tsis siv neeg tom qab quantifying cov kua nplaum. Raws li qhov zoo ntawm kev ua haujlwm siab thiab tsis muaj qhov tsis zoo, nws tau dhau los ua cov khoom siv zoo tshaj plaws uas tuaj yeem ua kom muaj txiaj ntsig zoo ntawm lub Hoobkas thiab txo cov khoom tsis tsim nyog.
Kev ua haujlwm nta
1. Semi-automatic nrov plig plawg disc tshuab muaj qib siab ntawm automation, thiab ib tus neeg tuaj yeem ua tiav cov haujlwm yam tsis muaj kev kawm nyuaj.
2. Kev ua haujlwm ntawm lub tshuab ua haujlwm siab, thiab txhua txoj haujlwm tuaj yeem tsim tau 8000-10000 daim (10 teev), uas tuaj yeem nqa cov txiaj ntsig zoo rau lub Hoobkas.
3. Cov cuab yeej siv tau zoo tshaj plaws ntawm cov khoom siv; cov nplaum thiab abrasive siv tuaj yeem teeb tsa dawb.
4. Tom qab peb qhov kev ua kom zoo thiab hloov kho, lub tshuab tau txais tus nqi qis heev, ze rau xoom feem pua. Qhov no tsis tsuas yog txo cov khoom pov tseg, tab sis kuj ua rau cov txheej txheem ntau lawm smoother.
Basic tsis
Basic specification | |||
Flap disc loj | Rov qab: φ75mm-φ180mm Flap dav: 11mm-35mm | Kua nplaum qty | 4-30g （±0.5g） |
Flap disc Hom | T27/T29 Ib leeg/ob lub ntsej muag | Flap qw | Nws tuaj yeem muab tso rau ntawm lub qhov rooj ntawm txhua qhov kev kawm |
Rov qab | Fiberglass, yas | Muaj peev xwm ntau lawm | 6000P/8H |
Hwj chim | Panasonic servo lub cev muaj zog | Tus neeg ua haujlwm | 1 |
Fais fab mov | Pneumatic, Hluav taws xob | Qhov hluav taws xob | 380V |
Glue twj | 280 KG | Nruab lub zog | 8 kWm |
Kua nplaum system | Airtac lub tog raj kheej, SMC Balance tswj valve | Glue system loj | 1100 * 560 * 1600 hli |
Siab | {0}}.6Mpa ~ 0.8Mpa | Lub tshuab loj loj | 1300mm * 900mm * 1400mm |
Photoelectric sensor | Autonics | Lub tog raj kheej | Airtac |
Sib nqus hloov | Airtac | Tswj vaj huam sib luag | Weinview |
Cua hloov | CHINT | Temp. tus tswj | OMRON |
Reducer | Liming | Cov kabmob | FAG |
Cov kabmob | NSK | PLC | DELTA |
Linear qhia rail | Hiwin | Pneumatic feem | SMC |
Paub meej
Qhov peb siv:

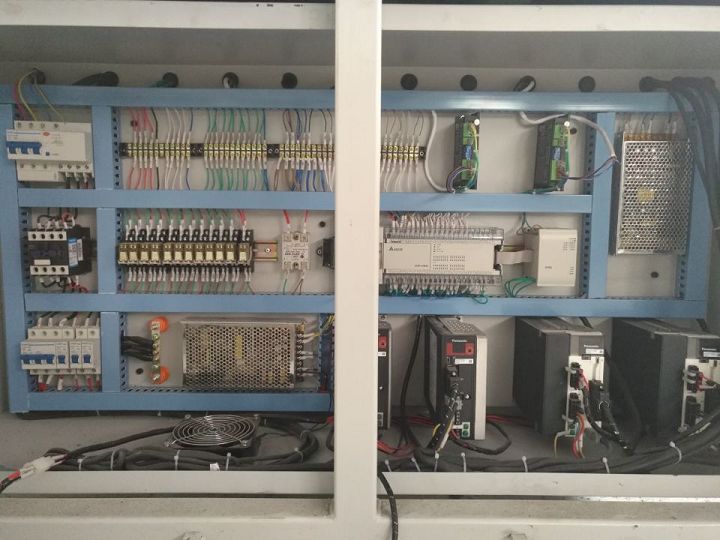

Hluav taws xob Box:
Peb Ntim thiab Shipping:
Lub tuam txhab muab cov txheej txheem ua haujlwm tiav raws li cov neeg siv khoom xav tau, suav nrog kev cob qhia kev tshaj lij los ntawm kev tsim, kev teeb tsa, kev cob qhia, kev tsim khoom, kev tswj kom zoo, thiab kev sim.
Txheej txheem kev koom tes
Kev npaj thiab teeb tsa thiab npaj rau kev ua haujlwm. Tus neeg siv khoom txiav txim siab qhov chaw kho tshuab, qhov chaw kho vajtse, thiab kev kho kom raug.
Muaj lus nug txog lub tshuab flap disc, thov tham nrog kuv.
